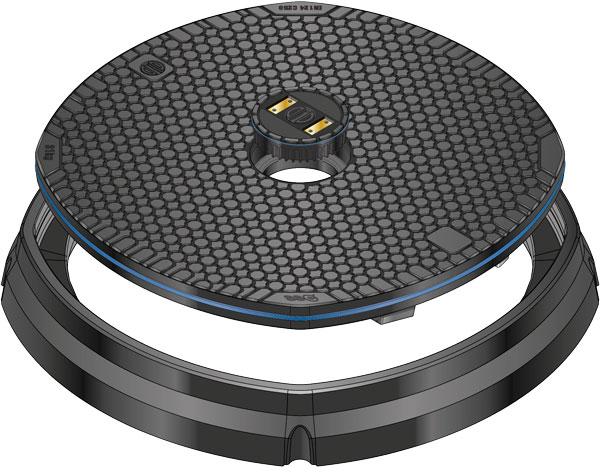

CR 90 with dip cap
This product is the same as the CR90 but has a dip cap in the centre of the cover. This can be removed instead of lifting the whole cover.
It is watertight and can have different coloured tabs inserted in the dip cap to identify different fuels.
The Benefits of a Structural Science composite cover over traditional covers.
This product is the same as the CR90 but has a dip cap in the centre of the cover. This can be removed instead of lifting the whole cover.
It is watertight and can have different coloured tabs inserted in the dip cap to identify different fuels.
The Benefits of a Structural Science composite cover over traditional covers.
- High structural performance
- Extended working life
- Permanent anti-slip
- Secure and lockable
- Injury free removal
- Reduced maintenance programmes
- Sealing (optional)
- Ventable
- Transparent to radio waves
- Non-corrosive
- Electrically non-conductive
- Client design service
- Petrol forecourts
- Low traffic areas
Cover Specifications
| Load Rating | EN124:1994 Class C250 |
| Clear Opening | 900mm Diameter (35 7/16″) CR90-DC incorporates additional dip cap with 150mm clear opening |
| External dimensions | 962 mm diameter (37 7/8″) |
| Skid resistance (wet polishes) | PSRV 60 |
| Weight | 31 Kg (68.3lb) Combined weight with frame 46kg (101.4lb) |
| Lifting points | Single key housing |
| Tread depth | Tread depth complies with EN124:1994 |
| Tread type | Embedded aggregate – uni-directional |
| Wear indicators | Four moulded |
| Markings | Week, year and location of manufacture on the underside of cover. Cover size, weight on the top surface. |
| Corrosion / chemical resistance | All component parts are resistant to chemical attack, diesel, petrol, salt and water or a combination of the above over the lifespan of the cover. Surface discolouration is acceptable in service. |
| Combustion properties | All component parts do not support combustion. Products of combustion do not contain harmful chemicals (eg bromides) |
| Sealed | Yes (optional – can be retro-fitted) |
| Vented | Available on request |
| Carbon footprint | Low |
| Material | Advanced fibre glass composite |
| Client logo | Can be provided on top surface |
| Security features | Available on request |
Frame specification
| Load Rating | EN124:1994 Class C250 |
| Clear Opening | 900mm Diameter (35 7/16″) |
| Weight | 15 Kg (33lb) |
| External dimensions | 1100 mm diameter (43 5/16″) |
| Material | Advanced fibre glass composite |
| Installation details | See installation page here |
Designs and specifications are subject to alteration, so that continuous improvement can be undertaken
