Plastic Manholes

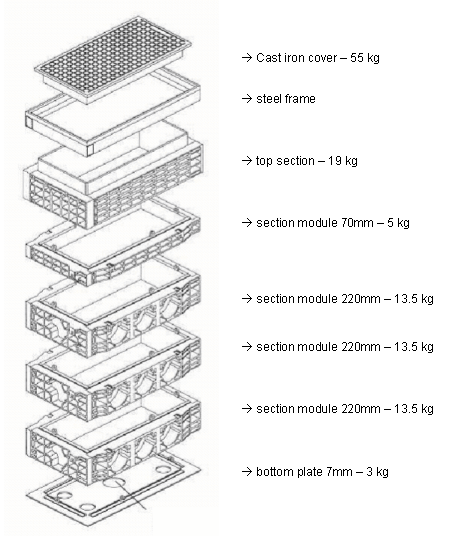

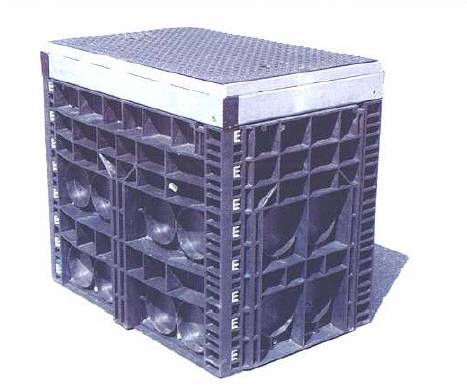

Example shown:
LIC Manhole EK 378, inner dimensions (l x w x h = 400 x 800 x 655 mm)
With predetermined breaking discs for pipe ducting
(here: diameter  110 mm for standard protection pipes)
with lockable cast iron cover for max. load 400 KN.

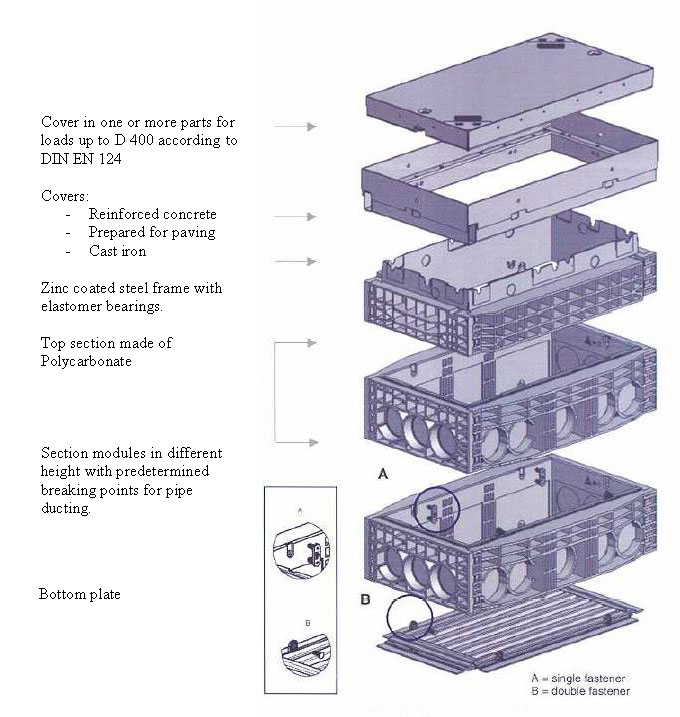

Modularity
• Height, pipe inlets variable by combination of sections with different features
• Number and formation of modules on customer’s request
• Installation of LIC manholes over existing cables and pipes is possible

Practical Product
• Smooth adjustment of height and tilt
• Ducting inlets prefabricated
• Practical connections by elastomer stoppers
• Sealing elements for single cables and thin pipes
• Covers for dynamic loads up to 400 KN D 400 according to DIN EN 124 can be provided
- with cast iron cover
- with reinforced concrete
- with cover prepared for paving
- lockable (with locking bar or screws)
- with recessed company logo
• Covers loads D 400 have to be locked

Strength
• Maximum strength and light weight construction due to high quality material (polycarbonate) for supporting structure
• Perfectly meshed with the ground
• Best mechanical protection by solid steel frame
• Height adjustment possible (up to 50mm)

Polycarbonate for supporting structure
• Good resistance against high temperatures
• Hot application of blacktop without problems
• Rot proof
• Good chemical resistance
• Multiple recycling possible

Economy
• Light weight construction – eases handling and transport (advantage of costs)
• Reduced expenses for storing and handling
• Lowest installed const, no concrete surround needed
• Minimized construction times, no need to cone off
• No special equipment needed

Logistics
• Optimized logistics system
• Standard sizes available within short

Specification
• The products produced are subject to DIN EN ISO 9001

STANDARD PROGRAM


Internal Dimensions (mm)	External Dimensions (mm)	Series
250 x 250	400 x 400	EK 268
250 x 550	400 x 700	EK 278
400 x 400	550 x 550	EK 358
400 x 650	550 x 800	EK 368
400 x 800	550 x 960	EK 378
400 x 1165	550 x 1300	EK 478
400 x 1600	550 x 1780	EK 628
550 x 550	700 x 700	EK 288
550 x 1165	700 x 1300	EK 338
650 x 650	800 x 800	EK 388
800 x 800	960 x 960	EK 328
800 x 1165	960 x 1300	EK 508
800 x 1400	960 x 1580	EK 428
800 x 1600	960 x 1780	EK 708
800 x 1825	960 x 2020	EK 728
800 x 2000	960 x 2200	EK 738
800 x 2200	960 x 2400	EK 748

DIMENSIONS ON REQUEST – NON STANDARD

Internal Dimensions (mm)	External Dimensions (mm)	Type
250 x 400	400 x 550	EK 528
250 x 650	400 x 800	EK 538
250 x 800	400 x 960	EK 548
250 x 1165	400 x 1300	EK 558
250 x 1400	400 x 1550	EK 638
250 x 1600	400 x 1780	EK 678
250 x 1825	400 x 2020	EK 768
250 x 2000	400 x 2200	EK 778
250 x 2200	400 x 2400	EK 788
400 x 550	550 x 700	EK 498
400 x 1400	550 x 1550	EK 408
400 x 1825	550 x 2020	EK 798
400 x 2000	550 x 2200	EK 908
400 x 2200	550 x 2400	EK 918
550 x 650	700 x 800	EK 488
550 x 800	700 x 960	EK 468
550 x 1400	700 x 1550	EK 648
550 x 1600	700 x 1780	EK 688
550 x 1825	700 x 2020	EK 928
550 x 2000	700 x 2200	EK 938
550 x 2200	700 x 2400	EK 948

DIMENSIONS ON REQUEST – NON STANDARD

Internal Dimensions (mm)	External Dimensions (mm)	Type
650 x 800	800 x 960	EK 398
650 x 1165	800 x 1300	EK 448
650 x 1400	800 x 1550	EK 418
650 x 1600	800 x 1780	EK 698
650 x 1825	800 x 2020	EK 958
650 x 2000	800 x 2200	EK 968
650 x 2200	800 x 2400	EK 978
1165 x 1165	1300 x 1300	EK 518
1165 x 1400	1300 x 1550	EK 658
1165 x 1600	1300 x 1780	EK 718
1165 x 1825	1300 x 2020	EK 898
1165 x 2000	1300 x 2200	EK 376
1165 x 2200	1300 x 2400	EK 386
1400 x 1400	1550 x 1550	EK 578
1400 x 1600	1550 x 1780	EK 668
1400 x 1825	1550 x 2020	EK 396
1400 x 2000	1550 x 2200	EK 406
1400 x 2200	1550 x 2400	EK 416

 DIMENSIONS ON REQUEST – NON STANDARD

Internal Dimensions (mm)	External Dimensions (mm)	Type
1600 x 1600	1780 x 1780	EK 618
1600 x 1825	1780 x 2020	EK 426
1600 x 2000	1780 x 2200	EK 436
1600 x 2200	1780 x 2400	EK 888
1825 x 1825	2020 x 2020	EK 758
1825 x 2000	2020 x 2200	EK 446
1825 x 2200	2020 x 2400	EK 456
2000 x 2000	2200 x 2200	EK 998
2000 x 2200	2200 x 2400	EK 466
2200 x 2200	2400 x 2400	EK 988

CLASSIFICATION ACCORDING TO OPERATIVERANGE
DINEN 124 / DIN 1229

COVER LOAD		FIELD OF APPLICATION
A 15 15 kN test load		Traffic areas utilized by pedestrians and bicycles only and similar areas (i.e. park areas)  – can be crossed by cars in restricted extension
Β 125 125 kN test load		Foot-walks, pedestrians areas, parking areas – can be crossed by cars in restricted extension
D 400 400 kN test load		All traffic ways (except landing runways)

Example: ΕΚ 368 series
Internal dimensions: 400 x 650 mm, Εxternal Dimensions: 560 x 786 mm, external height 972 mm, weight 76,5 kgplus 55 kg for the cover

Mounting of manhole - TypeΕΚ 628

Technical Data:
• Internal dimensions: 400 x 1600 mm
• Height: 1395 mm
• Weight: 470 kg
• Cover: concrete field, 2 parts

Situation:
LIC Manhole made from PC installed in a new cable channel

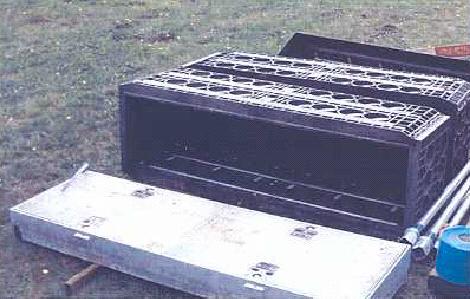

1) Before mounting:
• Cover concrete filled, 2 parts
• Steel frame
• Top section
• Frames
• Bottom plate

2) Bottom plate and frames placed on compressed ground and sand mixture.

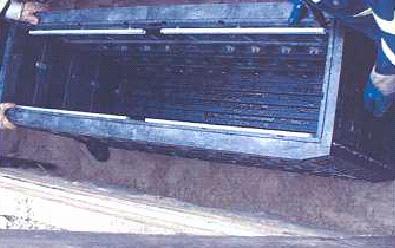

3) Bottom plate and frames in the pit.

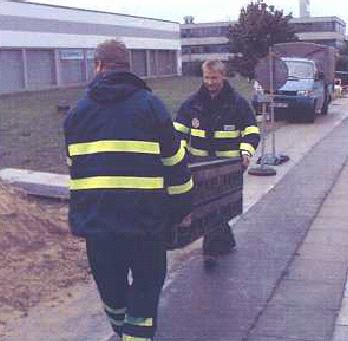

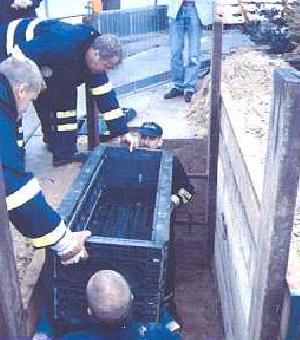

4)  All frames and the bottom plate are made from high tensile plastics. Due to lightness of material the frames can be moved by two persons only.



5) Additional frames are set.



6) Frames are fixed with dowels.

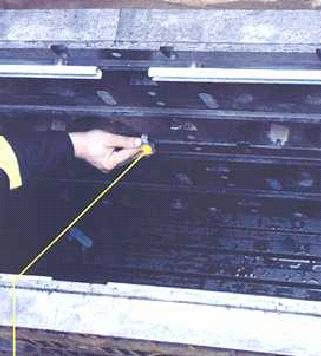

Driving in of dowels

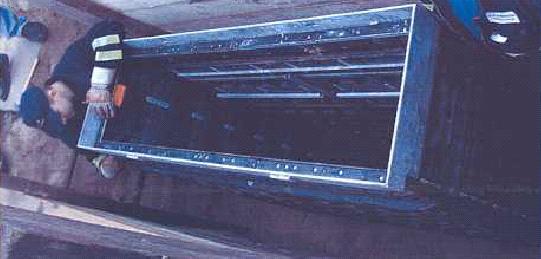

7) Mounting of top section and steel frame for housing of cover. Activation of variable height adjustment.



8) Covers are set in using cover hooks.

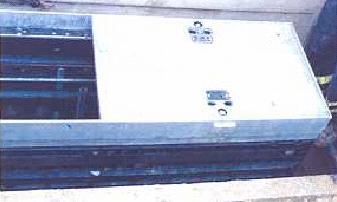

9) Cover is set. This type of cover is concrete filled (load B 125 or D 400 according to DINEN 124).
Covers can also be delivered made from cast iron or prepared for paving (load B 125 or D 400 according DINEN 124).

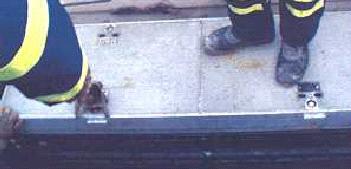

10) Coves are put in the steel cast frame and locked. Loading and unloading can be done easily without heavy lifting equipment.
