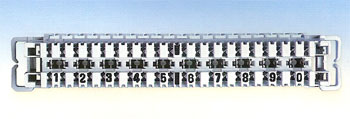

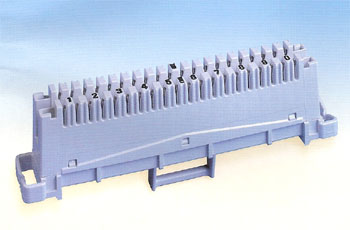

Connection Module 2/10
Technical Specifications Connecting modules
 •
they are designed as to accept 2-pole test plugs which are connected in
parallel with the line and end in 2-pole wire 1 m long
Mechanical Characteristics
• 1 Ο pair capacity
• Dimensions: Length=109,4 mm, Width=21,3 mm, Height=29,4 mm
• Temperature range: -40 C ~ + 70 C
• Wire termination with the IDC technique
• For copper wires of 0,35-0,8 mm diameter with total outer diameter
::::1,5 mm
• Α! least 200 connections - disconnections without affecting the contact
resistance
• Plug-in overvoltage protection strips
• Identification plugs (e.g. security and surveillance networks, lίΓθ
alarms)
• Material: - Body polycarbonate. - Contacts: Silver plated, 7 metals
copper alloy
Electrical Characteristics
• Nominal DC spark overvoltage: 200 V
• Insulation resistance >= 50.000 Mohms between any end point and all the
other end points short-circuited with the ground
• Dielectric strength: at least 2 kV RMS, 50 ΗΖ
• Current flow resistance <= 10 mohms with a DC test current of 10 mA
• Shock potential strength >= 3,6 kV (tests with pulses 1 ,2V/50 µs)
• Short-time current strength >= 5 kA (tests with pulses 8Ν20 µs)
|
|
 |
|
|
|
