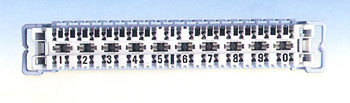

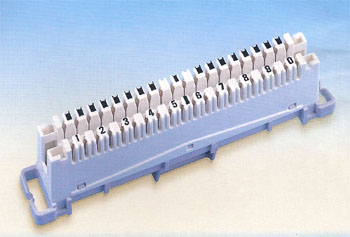

Disconnection Module 2/10
Technical Specifications Disconnecting modules
 • they are designed as to accept
4-pole test plugs which are connected in series with the line and end in
4-pole wire 1 m long, they also accept disconnection plugs for line
interruption
Mechanical Characteristics
• 1 Ο pair capacity
• Dimensions: Length=109,4 mm, Width=21 ,3 mm, Height=29,4 mm
• Temperature range: -40'C ~ + 70'C
• Wire termination with the IDC 1echnique
• For copper wires ΟΙ 0,35-0,8 mm diameter with total outer diameter :s; 1
,5 mm
• At least 200 connections - disconnections without affecting 1he contact
resistance
• Plug-in overvoltage protection strips
• Identification plugs (e.g. security and surveillance networks, lire
alarms)
• Material:
- Body: Polycarbonate.
- Contacts: Silver plated, 7 metals copper alloy
Electrical Characteristics
• Nominal DC spark overvoltage: 200 V
• Insulation resistance >= 50.000 Mohms between any end point and all the
other end points short-circuited with the ground
• Dielectric strength: at least 2 kV RMS, 50 ΗΖ
• Current flow resistance :s; 1 Ο mohms with a DC test current of 10 mA
• Shock potential strength >= 3,6 kV (tests with pulses 1,2V/50 μs)
• Short-time current strength >= 5 kA (tests with pulses 8A/20 μs)
|
|
 |
|
|
|
